Fusion Middleware 12c – SAP Adapter Configuration

Fusion Middleware 12c – SAP Adapter Configuration

To integrate SAP with Fusion Middleware 12c, there could have been three possible data flow interactions between SAP and Middleware :

1.       Outbound from Fusion Middleware

In this interaction, Fusion middleware will send data to SAP system.

2.       Inbound to Fusion Middleware

In this interaction, Fusion middleware will receive data from SAP system.

3.       Inbound and Outbound to Fusion

In this interaction, Fusion middleware will send data to SAP system as well as Fusion middleware will receive data from SAP system.

The high level summary of the required steps to achieve the integration Between SAP and Fusion Middleware (This assumes Fusion Middleware and SAP system are installed, configured and Running) is below :

1.       Download, Configure and Verify SAP JCO library.

2.       Create SAP Adapter using JDevloper 12c Design Time.

3.       Deploy and Configure SAP Adapter in Fusion Middleware 12c for Run Time.

4.       Test the Integration.

1.    Download, Configure and Verify SAP JCO library

SAP JCo is a middleware component which is used for communication between the Adapter and the SAP system. This component has to be installed in both design-time and run-time environments of Adapter for SAP.

Below are the required SAP JCo installation files:

i. Microsoft Windows

a. sapjco3.jar

b. sapjco3.dll

c. sapidoc3.jar

ii. Linux

a. sapjco3.jar

b. libsapjco3.so

c. sapidoc3.jar

These files are provided by SAP administrator or you can download the installation files from SAP service market place under https://service.sap.com/connectors using SAP Marketplace account Details.

JCo file location for the SAP Adapter :

§ In Design-time environment, place the files at below path:

<ORACLE_HOME> /soa/plugins/jdeveloper/integration/adapters/lib

§ In Run-time environment, place the files at below path:

<ORACLE_HOME> /user_projects/domains/soa_domain/lib

Verify JCo compatibility :

The compatibility verification should be done for Design time as well Runtime.

i. For Microsoft Windows

a.    Using Command Prompt, Navigate to the directory where the sapjco3.jar file is located.

b.    Set Java Classpath, Verify using Command

java –version

You should get similar response as below

c.     Run the below command to verify JCo comapatibility

        java -jar sapjco3.jar

     It should open a window as shown below

ii. For Linux

a.    Using Command Processor or Putty, Navigate to the directory where the sapjco3.jar file is located.

b.    Execute below command to verify compatibility of JCo library

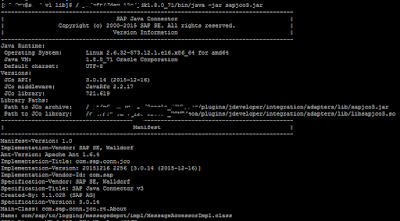

<Java Home>/bin/java -jar sapjco3.jar

You should get similar response as below

That's All guys. You have successfully configured SAP Adapter for SOA suite.

To continue further learning on SAP adapter follow the below posts:

To create an integration for Fusion Middleware 12c Inbound from SAP, follow the steps in my next blog post.

Fusion Middleware 12c Inbound - SAP Integration using SAP Adapter

http://osb-dheeraj.blogspot.in/2016/02/fusion-middleware-12c-inbound-sap.html

To create an integration for Fusion Middleware 12c Outbound from SAP, follow the steps in my next blog post.

Fusion Middleware 12c Outbound - SAP Integration using SAP Adapter

http://osb-dheeraj.blogspot.in/2016/02/fusion-middleware-12c-outbound-sap.html
